軸承

型號

Bearing number

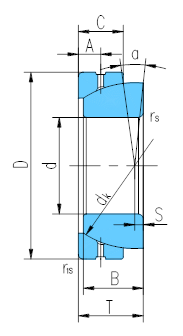

外 形 尺 寸

Dimensions 　　　　　　　　mm/inch

額定載荷

Load ratings  kN

重 量

Weight

≈kg

d

D

B

C

T

d_k

S

A

r_s,r_1s

max

α?

≈

動載荷

Dynamic

靜載荷

Static

GACZ12S

12.7

22.225

6.86

4.83

7.62

18.26

1.3

2.39

0.51

7

6

18

0.013

0.5

0.875

0.27

0.19

0.3

0.719

0.051

0.094

0.02

GACZ15S

15.875

26.988

8.64

6.35

9.40

22.83

1.48

2.77

0.76

6

10

31

0.025

0.625

1.0625

0.34

0.25

0.37

0.899

0.058

0.109

0.03

GACZ19S

19.05

31.75

10.41

7.87

11.18

27.43

1.79

3.18

1

6

16

47

0.038

0.75

1.25

0.41

0.31

0.44

1.08

0.07

0.125

0.04

GACZ22S

22.225

36.512

12.19

9.65

13.21

31.95

2.02

4.37

2

5.5

22

66

0.049

0.875

1.4375

0.48

0.38

0.52

1.258

0.08

0.172

0.08

GACZ25S

25.4

41.275

13.97

11.18

15.24

36.50

2.54

5.16

2

6

29

87

0.085

1

1.625

0.55

0.44

0.6

1.437

0.1

0.203

0.08

GACZ31S

31.75

50.8

17.78

13.97

18.80

45.59

3.36

5.94

2

6

47

142

0.159

1.25

2

0.7

0.55

0.74

1.795

0.132

0.234

0.08

GACZ34S

34.925

55.562

19.56

15.24

21.34

49.20

3.69

7.14

2.54

4

53

159

0.213

1.375

2.1875

0.77

0.6

0.84

1.937

0.145

0.281

0.1

GACZ38S

38.1

61.912

21.34

16.76

23.11

54.74

3.93

7.92

2.54

5.5

66

197

0.301

1.5

2.4375

0.84

0.66

0.91

2.155

0.155

0.312

0.1

GACZ44S

44.45

71.438

24.89

20.07

27.18

63.88

4.72

8.33

2.54

6

91

273

0.458

1.75

2.8125

0.98

0.79

1.07

2.515

0.186

0.328

0.1

GACZ50S

50.8

80.962

28.70

23.37

31.24

73.02

5.51

9.52

3.56

5.5

122

365

0.671

2

3.1875

1.13

0.92

1.23

2.875

0.217

0.375

0.14

GACZ57S

57.15

90.488

32.26

26.67

35.31

82.17

6.18

11.51

3.56

5.5

155

466

0.948

2.25

3.5625

1.27

1.05

1.39

3.235

0.243

0.453

0.14

GACZ63S

63.5

100.013

36.07

29.97

39.12

91.19

6.79

12.7

3.56

5

196

589

1.13

2.5

3.9375

1.42

1.18

1.54

3.59

0.267

0.5

0.14

GACZ69S

69.85

111.125

39.62

32.38

43.18

100.33

7.46

13.08

4.6

5

231

694

1.75

2.75

4.375

1.56

1.275

1.7

3.95

0.294

0.515

0.18

GACZ76S

76.2

120.65

43.43

35.69

47.24

109.52

8.17

14.68

4.6

5

279

838

2.28

3

4.75

1.71

1.405

1.86

4.312

0.322

0.578

0.18

GACZ82S

82.55

130.175

47.24

39.24

51.56

118.74

9.04

16.66

4.6

5

332

995

2.89

3.25

5.125

1.86

1.545

2.03

4.675

0.356

0.656

0.18

GACZ88S

88.9

139.7

50.80

42.54

55.37

128.02

9.51

17.86

4.6

5

389

1167

3.57

3.5

5.5

2

1.675

2.18

5.04

0.374

0.703

0.18

GACZ95S

95.25

149.225

54.61

45.85

59.44

136.91

10.1

19.43

4.6

4.5

449

1348

4.35

3.75

5.875

2.15

1.805

2.34

5.39

0.398

0.765

0.18

GACZ101S

101.6

158.75

58.42

49.15

63.50

146.05

10.4

19.84

4.6

4.5

515

1545

5.26

4

6.25

2.3

1.935

2.5

5.75

0.409

0.781

0.18

GACZ114S

114.3

177.8

65.79

55.75

71.12

164.46

12.4

22.22

4.6

4.5

663

1990

7.76

4.5

7

2.59

2.195

2.8

6.475

0.488

0.875

0.18

GACZ127S

127

196.85

73.15

62.36

79.50

182.63

13.9

25.4

4.6

4.5

818

2455

11.07

5

7.75

2.88

2.455

3.13

7.19

0.547

1

0.18

GACZ152S

152.4

222.25

78.74

66.42

85.72

207.16

16.1

34.8

4.6

4.5

985

2955

17.37

6

8.75

3.1

2.615

3.375

8.156

0.634

1.37

0.18
